GRAPHTEC FCX2000 Series
The FCX2000 flatbed cutter is the ultimate solution for prototyping and small production runs of rigid packaging media and other sheet fed materials. With Graphtec's medium to large flatbed cutting plotters, you have the right tool for contour cutting without requiring a die. Reduce media waste and processing time with included, dedicated software.
Added offline, USB operation enables operators of all skill levels to process various types of media for cutting.
Up to Kg Cutting Force & 400 mm/s Cutting Speed

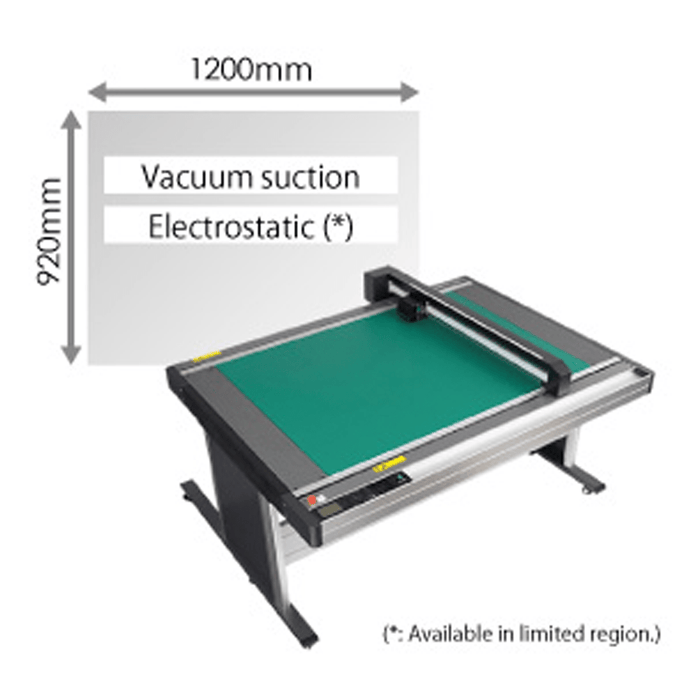

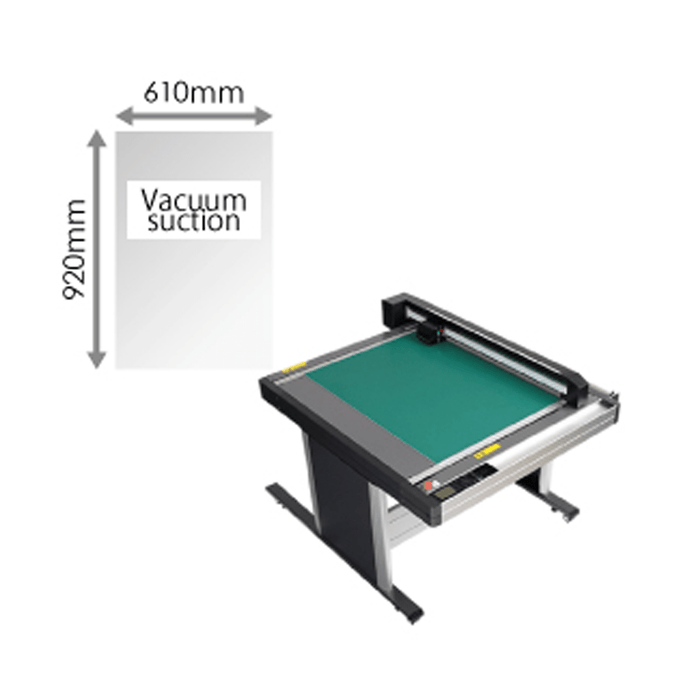

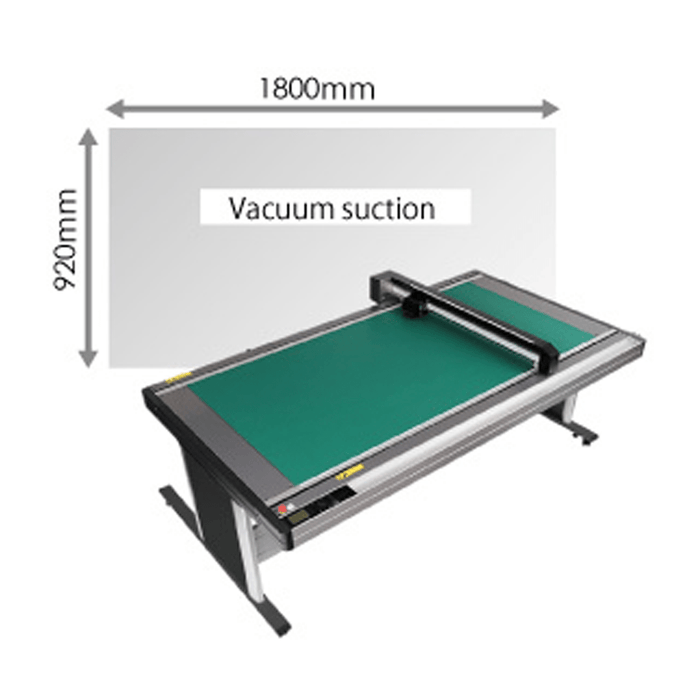

 DIFFERENT MODEL SIZES
 different table size with choice of vacuum suction or electrostatic media-hold down methods depending on application.
VACUUM SUCTION: This holds media with the use of external electric vacuum pump. This is the preferred method for heavier and thicker media.
TWO PUMPS AVAILABLE: 110V HAS 1.5 HORSE POWER, 220V HAS 2.5 HORSE POWER
SUITABLE TOOLS FOR MANY APPLICATIONS
- The FCX2000 series has 2 tool holder in the carriage.
- Using 2 different kind of tool allows to do a different job without exchanging a tool at the same time; increasing work efficiency.
- Dual Tool Holders which can hold a cutting blade and creasing tool to produce creases/folds and cuts on the same run.
- Maximum Cutting Force - Tool 1: 500 gf, Tool 2: 1,000 gf
Cut and plot data is created with Cutting Master 4 or Graphtec Pro Studio. That saved data may be transferred to a USB flash memory and the cut plot data file can be selected from the USB on the FCX2000 using its menu operations. This simplified work-flow enables users to operate without being connected to the computer.
BARCODE DATA MANAGEMENT WITH USB FLASH MEMORY
When performing contour cutting, also known as Print & Cut, the cutting data is automatically selected from the prepared USB flash memory. The FCX2000 scans the bar code printed on the media then automatically performs the contour cutting job. This emerging method helps to prevent operator error of using incorrect data - thus improving workflow efficiency.
