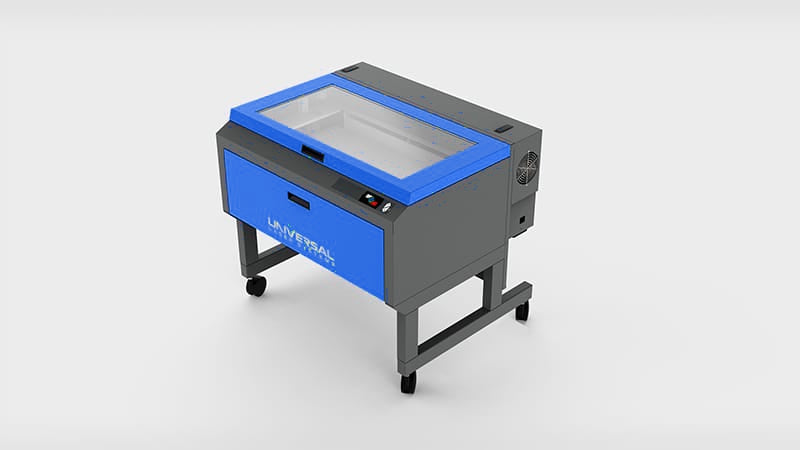

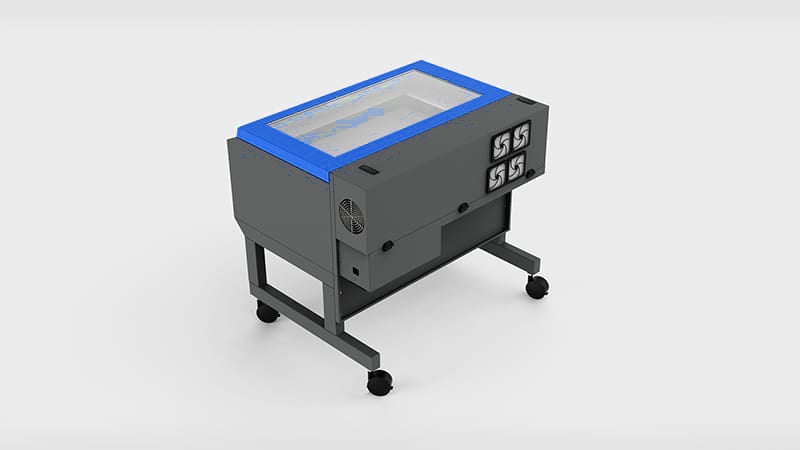

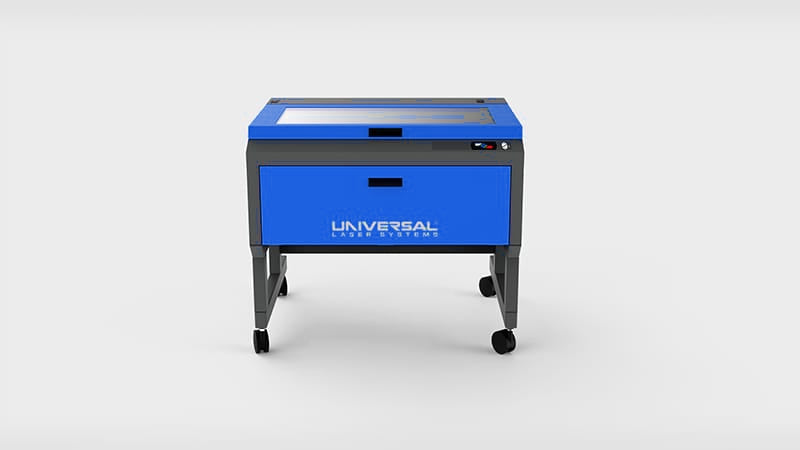

Universal Laser VLS6.75

Product Description
Call for a quote
Maximum quantity available reached.


The largest in the VLS platform line, the VLS6.75 has a wide and deep engraving area that can accommodate a variety of materials.

The VLS6.75 is a free-standing platform with a material processing envelope of 32" x 18" x 8.5" or 4,896 in³ (813 x 457 x 216 mm or 80,253 cm³). The single laser platform supports a 10.6µm CO2 laser source ranging in power from 10 to 75 watts or one 9.3µm CO2 30 watt, 50 watt, or 75 watt laser source.

In addition to the basic capabilities of the machine, there are a number of patented Uniquely Universal features that are only available from Universal Laser Systems. Laser Interface and Rapid Reconfiguration are Uniquely Universal features that come standard on the VLS6.75, and a number of additional options are available to enhance your laser processing capabilities. All Universal laser platforms use interchangeable components, giving you the ability to tailor your system to fit your needs.

For more in depth information, download the brochure!

System Specifications

Work Area

32 x 18 in (813 x 457 mm)

Maximum Part Size

37 x 23 x 8.5 in (940 x 584 x 216mm)

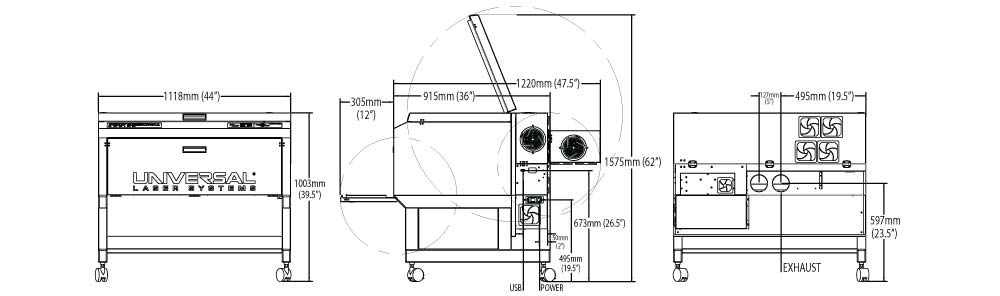

Dimensions

44 x 39 x 36 in (1118 x 991 x 914 mm)

Rotary Capacity

Max Diameter 8 in (203 mm)

Motorized Z Axis Lifting Capacity

40 lbs (18 kg)

Available Lenses

2.0 in (50 mm)



High Power Density Focusing Optics

Laser Platform Interface Panel

Five button keypad

Operating System Compatibility

Requires a dedicated PC to operate.

Compatible with Windows 7/8/10 32/64 bit.

PC Connection

USB 2.0

Optics Protection

Integrated with included gas assist

Cabinet Style

Floor-Standing

Laser Options

10, 30, 40, 50, 60 and 75 Watts

Approximate Weight

325 lbs (147 kg)

Power Requirements

110V/10A

220V-240V/5A

Exhaust Connection

Two 4 in (102 mm) ports

500 CFM @ 6 in static pressure (850 m3/hr at 1.5 kPa)

Always trust the All Stars at Grant Graphics for all your Digital Print and media needs!

Sku: VLS675
