Techno Router LC Series 4896

Original price $30,000.00 - Original price $30,000.00
Original price
$30,000.00
$30,000.00 - $30,000.00
Current price $30,000.00
SKU

Grant Graphics is proud to offer the LC Series 4896 from Techno Router!

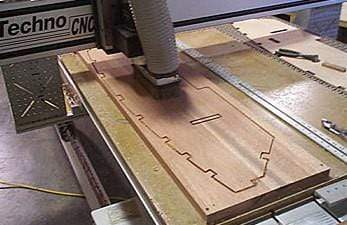

Techno inc recently released their New LC Series Nesting Machine, specifically designed to meet all the needs of cabinet makers, custom millwork shops, exhibit, display, and point-of-purchase manufacturers. The New LC configuration includes a 5 hp automatic tool change spindle, 5-Spindle Drill Bank, vacuum table hold-down system, 10 hp pump, and material location pins, with nesting software. This machine was engineered to give these industry specific manufacturers the ability to automate their production during a time when money really means everything.


Product Category CNC Routers
Router Configuration
Number of Axes 3 Axis
Frame Construction Gantry
Specifications
X-axis Travel 48 inch (1219 mm)
Y-axis Travel 96 inch (2438 mm)
Z-axis Travel 8.9 inch (226 mm)
Repeatability 1 mils (25.4 µm)
Resolution 0.2000 mils (5.08 µm)
Maximum Speed 250 to 800 in/min (106 to 339 mm/sec)
Features

Multiple Spindles (optional feature); Tool Changer (optional feature); Vacuum Table (optional feature)

Come see our demo unit at our facility in Saratoga Springs NY today!
